Aluminum Facade & Ceiling Solutions for Extreme Cold Climates: What Changes in the Specification

In regions where winter lows fall below -30°C and heavy snow or high winds are frequent, simply “using a thicker panel” from a standard product line is never a real solution. Whether it’s a large-area قشرة الألومنيوم facade on a railway station, curtain wall aluminum components on an airport terminal, or an interior metal ceiling system in a public building, extreme cold climates create the same core failure modes: joint cracking from thermal expansion and contraction, brittle fracture at low temperature, condensation-driven coating failure, and added structural load from snow and wind.

Several recent public-building projects in cold-climate regions — spanning high-speed rail hubs, high-altitude airport terminals, and border-crossing customs halls — have converged on a fairly mature approach to specifying aluminum facade and ceiling systems for these conditions. Below, we break down exactly what changes in the spec sheet across three representative cold-climate scenarios.

High-Speed Rail Stations: Prefabricated Aluminum Canopies & Low-Temperature-Rated Aluminum Veneer

For a high-speed rail terminal building in a far-northern climate zone, where winter extreme lows reach -35°C and blizzard conditions are common, the exterior facade required technical performance well beyond that of standard-climate specifications.

On the materials and design side, the project used large-area PVDF-coated aluminum veneer panels in a red-pine wood-grain finish (see our PVDF surface finish و wood-grain surface finish options), paired with multiple “Y”-shaped tree-crown aluminum elements to echo the surrounding boreal forest landscape. Custom-profile components like these already demand tighter fabrication tolerances than flat panel facades; combined with sub-zero exposure, the raw aluminum alloy needs stricter low-temperature toughness qualification to avoid brittle fracture.

On the construction side, the project was among the first in China to apply prefabricated aluminum canopy systems at scale in a high-cold rail station context, achieving roughly 3x the construction efficiency of traditional cast-in-place methods. The advantage isn’t only speed — moving detailed fabrication into a controlled factory environment reduces the risk that on-site cold-weather installation degrades material performance or dimensional accuracy. Our الحلول المعمارية و مصممة خصيصاً لك services are built around this kind of project-specific, factory-first customization.

Field verification showed the aluminum components did not crack at -40°C, and after commissioning, the facade showed no freeze-thaw deformation or coating delamination — validating the “low-temperature-rated veneer + prefabricated construction” approach for large cold-climate rail hubs. For related applications, see our railway station aluminum exterior wall panel و railway station aluminum linear ceiling product lines.

Specification takeaways:

• Raw alloy must pass low-temperature toughness verification to prevent brittle fracture
• PVDF coatings must deliver both low-temperature and UV-aging resistance
• Custom profile components should default to factory-prefabricated assembly rather than field fabrication
• Joint and canopy details need larger allowances for thermal expansion/contraction

High-Altitude, Large-Diurnal-Swing Airport Curtain Walls: Alloy Selection Meets Energy Performance

High altitude, intense UV exposure, a diurnal temperature swing exceeding 30°C, severe winter cold combined with intense summer sun, and frequent sandstorms — this is the compound climate challenge faced by curtain wall systems on high-altitude airport terminals. The difficulty here is greater than a purely cold-climate project: the system must resist both low-temperature embrittlement and high-temperature/UV degradation plus abrasive windborne sand.

The primary load-bearing mullion system used 6061-T6 aluminum alloy, a grade that balances strength, machinability, and weather resistance well for large-span curtain wall loads. This was paired with double-silver Low-E ultra-clear glass and PVDF-coated aluminum veneer to form a composite curtain wall system — see our قشرة الألومنيوم و تكسية الواجهة بالألمنيوم لمبنى المطار product pages — balancing daylighting transparency with thermal insulation.

On the construction-detail side, the mullion system incorporated built-in moisture-proof aluminum foil with pre-drilled drainage holes to manage internal condensation caused by large diurnal swings, while connectors used 316L stainless steel spider fittings to resist corrosion and abrasion from sandstorm exposure. With these optimizations, the overall system achieved a thermal transmittance below 1.8 W/(m²·K), a strong energy-performance result.

In operation, combined with adjustable external shading louvers, the building achieved an annual energy savings rate above 35%; long-term use showed no thermal expansion/contraction deformation in the aluminum components and no sand infiltration or seal failure. Related applications: modern aluminum grille ceiling system in airport halls و نظام الأسقف المعلقة المصنوعة من الألومنيوم المعلق للديكورات الداخلية للمطارات.

Specification takeaways:

• Primary mullion alloy grade must balance strength and weather resistance (e.g., high-strength 6061-T6-class alloys)
• Glass configuration should account for both insulation and glare control (Low-E coating layers)
• Moisture-proof backing and drainage details inside mullions address large-diurnal-swing condensation
• Fasteners and connectors should be upgraded to higher corrosion-resistance grades (e.g., 316L) in sandstorm-prone regions
• Overall system thermal transmittance is a key energy-code metric and must be calculated at the design stage

Border-Crossing Terminal Ceilings: Low-Temperature Aluminum Clip-In Panels & Wind-Resistant Construction

In a customs hall project on a northern border, where winter lows reach -40°C and high winds are frequent, the interior ceiling system also required climate-specific specification rather than a standard commercial-space ceiling spec.

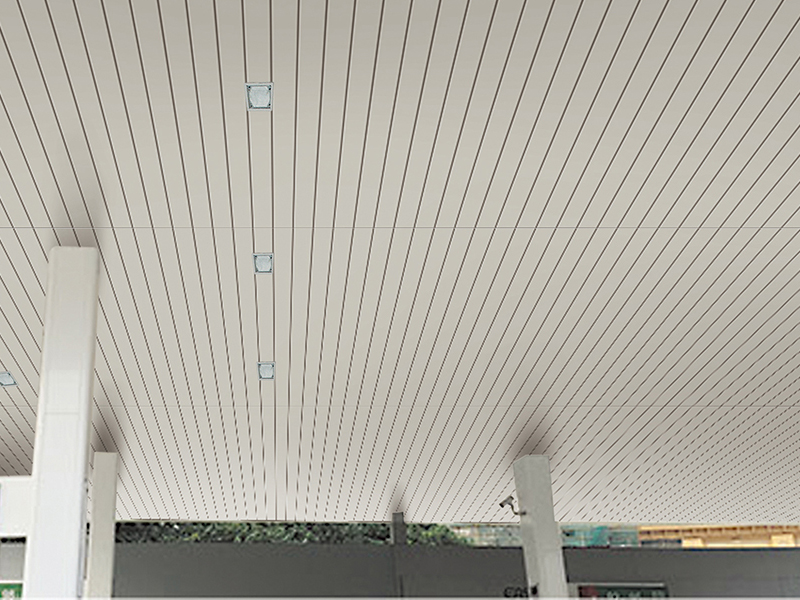

The project used low-temperature-rated aluminum clip-in panels — see our مشبك في السقف product line — paired with wind-resistant aluminum strip ceiling systems (see السقف الشريطي), covering a total installed area of over 8,000 m², a large-span, high-traffic public-space ceiling application.

On the process side, a specialized coating treatment ensured panels did not deform at -30°C, while also meeting fire-resistance and moisture-resistance requirements suited to the high-traffic, high-cleaning-frequency conditions of a customs hall.

On the supply-chain side, the project achieved a notably short delivery window (as fast as 72 hours to some regions), significantly compressing the construction schedule. Once in service, the ceiling system fully withstood local extreme cold and high-wind conditions, with no panel deformation or detachment reported. Related products: suspended aluminum grid ceiling for hospital corridors و aluminum linear tube ceiling system for hospital interiors for comparable high-traffic public-space specs.

Specification takeaways:

• Ceiling panels need dedicated low-temperature deformation testing (e.g., verified stability at -30°C)
• Grid and clip systems in high-wind zones need reinforced anti-detachment design
• High-traffic public ceilings must simultaneously meet fire-resistance and moisture-resistance requirements
• Supply chain lead time is a hidden schedule variable in cold-climate projects and should be built into procurement planning

Cross-Case Specification Checklist

Across these three cold-climate scenarios — a far-north rail station, a high-altitude/large-diurnal-swing airport, and a high-wind border customs hall — the application differs (facade panel, curtain wall mullion, interior ceiling) but the specification logic is highly consistent, summarized across five dimensions:

Practical Checklist for Architects, Contractors & Developers

When finalizing facade and ceiling specifications for a cold-climate project, we recommend confirming the following:

• Confirm historical extreme low temperatures and snow/wind frequency data for the project site
• Verify the alloy grade has passed low-temperature toughness (non-crack) testing
• Confirm surface coatings (PVDF/powder) carry dual low-temperature and UV-resistance certification
• Verify facade/ceiling construction includes moisture-proofing, drainage, and thermal-break details
• Confirm fastener corrosion-resistance grade matches local sand/wind or coastal-salt exposure
• Evaluate factory-prefabricated construction to compress on-site cold-weather work windows
• Confirm supply chain lead time and build it into overall project schedule risk assessment
• Request third-party low-temperature test reports from suppliers as bid/acceptance documentation

الخلاصة

Aluminum facade and ceiling systems for extreme cold climates require a genuinely systematic redesign — from alloy selection through construction detailing and installation method — not a reinforced version of a standard product. Whether the project is a rail station, an airport terminal, or a border customs facility, the installations that actually withstand extreme cold, heavy snow, and high wind are the ones where climate data, alloy performance, construction detail, and installation method were all built into the specification from day one.

If you’re planning a facade or ceiling project for a cold-climate region, contact our engineering team for climate-specific specification recommendations and technical support. You can also browse our full Product Gallery و معرض المشاريع — including our مشروع المطار و مشروع المحطة categories — for related case references.
