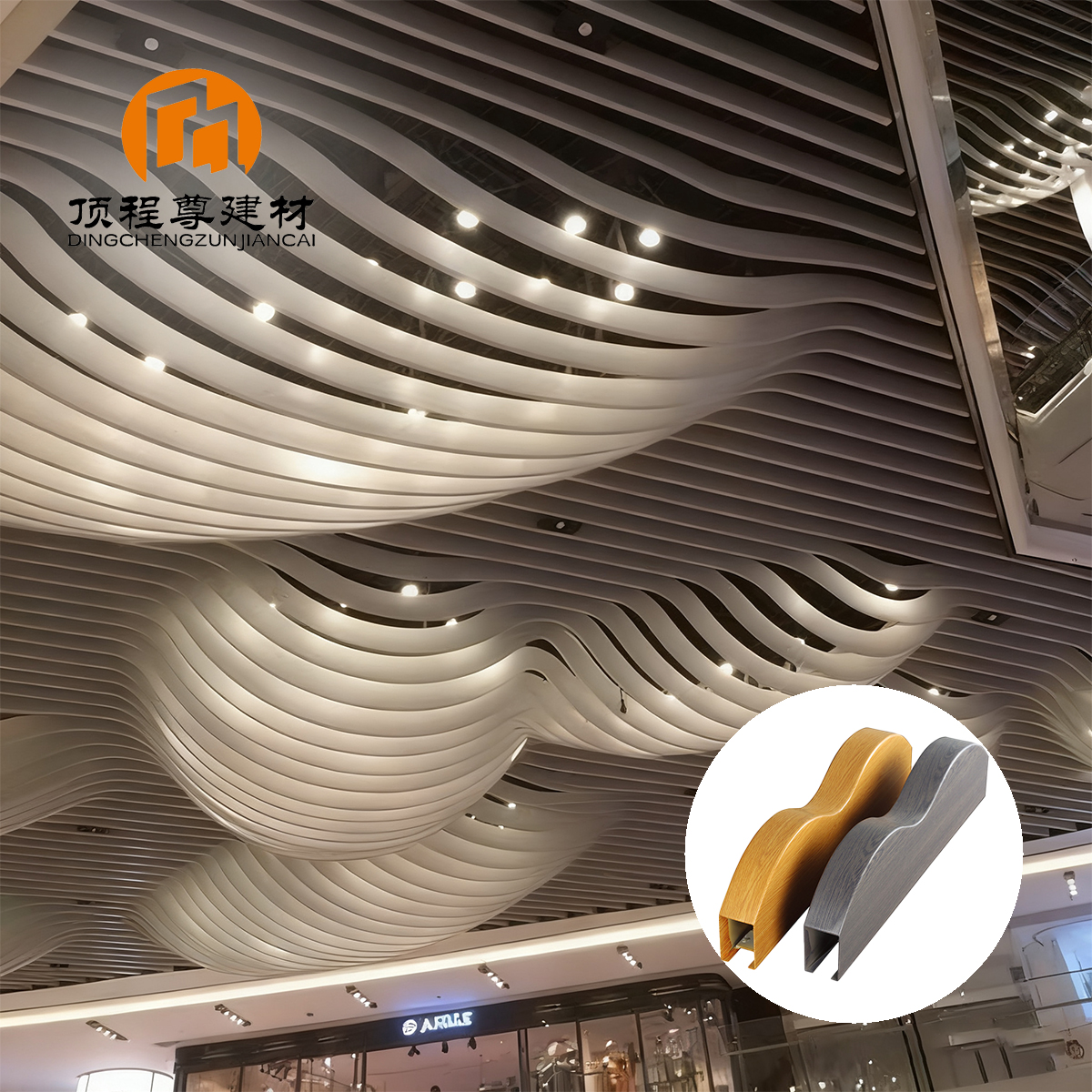

Parametric Wave-Form Aluminum Baffle Ceiling with Integrated Lighting
There's a meaningful difference between a ceiling with one consistent wave pattern repeated across a span, and a ceiling where the wave itself changes — rising, dipping, layering over an adjacent wave, creating something closer to a dune landscape than a uniform ripple. The second version is a fundamentally harder production problem: instead of one curve profile repeated and cut to length, every fin in the installation may need its own unique curvature, and no two sections of the ceiling read exactly the same way. Dingchengzun's parametric wave-form aluminum baffle system is built for exactly this kind of non-repeating, sculptural ceiling — where the design brief isn't "a wave pattern" but a specific, three-dimensional overhead landscape that only works if hundreds of individually curved fins are fabricated and installed in the exact sequence a design model specifies.
This level of complexity generally starts with a 3D parametric design model — built collaboratively with the project architect or designer — that defines each fin's unique curve, length, and vertical position before a single piece is fabricated. That model becomes the fabrication blueprint: each fin gets manufactured to its specific curve and tagged for its exact installation position, since a fin fabricated for one location in the pattern generally can't be swapped with a fin from another position the way interchangeable straight or uniformly-curved components can be.
Integrated spotlighting adds another coordination layer specific to this application — light fixtures are typically mounted within the troughs between wave layers, which means fixture position needs to be resolved as part of the same parametric model that defines the fin geometry itself, not planned separately and retrofitted into wherever a gap happens to exist.
Looking for Custom Aluminum Ceilings and Facades? Let's Talk
Product Application Showcase
Because each fin is uniquely fabricated rather than drawn from repeatable stock, production sequencing and installation logistics look different from a standard wave or straight baffle project — panels are typically produced, labeled, and shipped in installation sequence rather than as a bulk quantity of interchangeable units, and installation teams work from the same numbered sequence the fabrication drawings used. This makes accurate as-built dimensional surveying of the actual ceiling volume — not just architectural drawings — an important early step, since a parametric wave pattern this complex needs to resolve against the real structural conditions of the space, not an idealized model.
Finish selection (wood grain or brushed metallic, as with our standard wave-form product) still applies here, though the choice matters even more given how much surface area and how many changing angles are involved — a metallic finish across a multi-layer dune pattern with integrated lighting creates significantly more visual complexity in how light catches each surface than the same finish would on a simpler, single-direction wave.
Product Installation
Aluminum Baffle Ceiling Installation Instruction
Install the suspension rods according to the ceiling layout and ensure all hanging points are kept at the same level. Fix the perimeter trim and suspension framework securely to provide stable support for the aluminum baffle ceiling system.
Check and adjust the framework carefully to make sure it is level, straight, and properly aligned before installing the baffles. Then install the aluminum baffle sections in the planned sequence, ensuring each piece is fixed firmly and the spacing remains neat and consistent.
Prepare reserved positions in advance for lights, air diffusers, sprinklers, and access openings. After installation, inspect the ceiling alignment, baffle connections, and overall stability to ensure a clean, secure, and uniform finish.
Custom height, width, length, thickness, and spacing are available for project needs.
U-shape, rectangular, square tube, colors, wood grain, and textures can be customized.
The patterns shown here are only part of what Dingchengzun offers. Our aluminum baffle ceilings are available in a wide range of design options, including straight baffles, curved baffles, wood-grain patterns, metallic finishes, perforated styles, and customized profiles. These pattern choices help meet different project needs for spacing, visual rhythm, ventilation, acoustic performance, and modern ceiling design.
The colors shown here represent only part of the available color options for Dingchengzun aluminum baffle ceiling systems. We provide a wide range of standard and customized colors to support different interior design concepts, helping commercial spaces achieve clean, modern, and visually layered ceiling effects.
Our aluminum baffle ceiling colors are designed to coordinate with architectural materials, lighting systems, and overall space styles. From classic white, black, gray, and metallic tones to wood grain finishes and customized project colors, Dingchengzun offers flexible color solutions for shopping malls, offices, airports, stations, hotels, schools, and public buildings.
Click the button below to explore more color options. Dingchengzun supports project-based color selection and customization for aluminum baffle ceiling systems, helping designers, contractors, and developers match different architectural styles, functional requirements, and application environments.
The standard wave-form product uses a repeating or consistently-varying wave pattern along a straight ceiling plane. This system is for genuinely non-repeating, multi-layer sculptural patterns where individual fin curves differ throughout the installation, which requires a full parametric design model rather than a repeatable wave profile.
For a genuinely non-repeating dune-style pattern like this, yes — most fins are fabricated to their own unique curve and tagged for a specific installation position, since the geometry generally doesn't repeat closely enough for fins to be interchangeable between positions.
Light fixture positions are resolved within the same parametric model that defines the fin geometry, since fixtures are typically mounted in the troughs between wave layers and need to align with the specific three-dimensional form rather than being added afterward.
An accurate as-built survey of the actual ceiling volume and structural conditions, combined with your architect or designer's parametric design intent, are the key early inputs — production planning depends on resolving the model against real site dimensions rather than idealized drawings.
