Aluminum Facade Cladding for Hot & Dusty Climates

What Changes in a Hot-Climate Facade Spec

A facade in Riyadh, Dubai, Tashkent or Dushanbe fails for different reasons than one in a mild climate. The panel itself rarely breaks. What fails is the coating that fades, the joint that cracks, or the fixing that cannot move with the metal. Five changes make the difference:

1. Coating: specify 70% PVDF that meets AAMA 2605, not standard polyester or powder coating.
2. Color: choose light or heat-reflective colors where possible. Dark panels in direct sun run much hotter and move more.
3. Movement: design every fixing and joint for thermal expansion, using slotted holes and calculated joint widths.
4. Panel build: use 2.5 mm solid aluminum as standard, and 3.0 mm with stiffeners on large panels, so heat does not cause visible waviness.
5. Dust: detail joints and sealants to keep sand out and make the facade easy to clean.

Coated solid aluminum panels are also rated Class A2 for fire, which matters in markets such as the UAE that restrict combustible cladding. The sections below explain each point.

The Four Stresses on a Hot-Climate Facade

Heat is about the surface, not the air. In direct sun a facade can run tens of degrees hotter than the air around it. Research from Germany’s Fraunhofer Society found a deep red facade can reach about 80 °C in sunshine, while a yellow one stays near 65 °C. In a desert where the air is already above 45 °C in summer, dark panels get hotter still.

Fire rules have tightened. The UAE Fire and Life Safety Code, introduced in 2011 and tightened in 2017, requires non-combustible cladding on new buildings. In 2023 Sharjah began replacing combustible composite cladding on more than 200 existing towers. Solid aluminum panels have no plastic core. Under China’s GB 8624-2012 classification, coated panels (PVDF, polyester or powder) are typically rated Class A2, non-combustible with limited smoke, and uncoated plain aluminum Class A1. Always confirm the current code, and which fire test standard is accepted, with the local civil defense authority for your project. We provide fire test reports with orders.

Coating: Specify PVDF to AAMA 2605

In high-UV climates, the coating decides how long the facade looks new. For exterior panels, specify a PVDF coating with at least 70% PVDF resin that meets AAMA 2605, the highest US performance standard for architectural coatings on aluminum.

AAMA 2605 is proven by 10 years of outdoor exposure in South Florida. After that decade, the coating must show:

Standard polyester and powder coatings do not carry this 10-year proof. They suit interiors and shaded areas, but in desert sun they fade and chalk much sooner. Our Powder Coating vs PVDF guide compares the two in detail.

Two-coat or three-coat? A two-coat PVDF system (primer + color) suits most solid colors. Metallic, pearlescent and bright colors usually need a three-coat system with a clear topcoat. Sand abrasion is another reason to consider the extra clear coat on exposed, low-level panels.

Our standard system. Dingchengzun uses AkzoNobel PVDF coatings as standard, and can apply another coating brand when the project specification calls for it. AAMA 2605 test reports for our standard PVDF system are provided with orders. Coastal Gulf cities face salt air as well as heat; our coastal curtain wall specification guide covers alloy and coating choices for those sites.

Choose color with heat in mind. Light colors reflect more sunlight, so the panel runs cooler, moves less and fades less. If the design needs a dark color, ask for a “cool” PVDF formulation with infrared-reflective pigments. These keep a dark color while reflecting more heat. Compare options in our surface finishes and color charts.

Thermal Movement: Design Every Joint to Move

Aluminum expands about twice as much as steel for the same temperature change. On a hot-climate facade this movement is the most common cause of buckled panels, sheared fixings and split sealant. The fix is not a stronger panel. It is a fixing system that lets each panel move freely.

The movement of a panel is calculated as:

\Delta L = \alpha \times L \times \Delta T

where α is about 23 × 10⁻⁶ per °C for aluminum, L is the panel length, and ΔT is the change in panel surface temperature.

Worked example. A 3,000 mm tall panel is installed when its surface is 25 °C.

Nearly 7 mm on a single panel is enough to buckle it if it is fixed rigidly at both ends. Central Asian sites are the hardest case, because they combine summer heat with deep winter cold. Our guide to aluminum facades for extreme cold climates covers the winter side in detail.

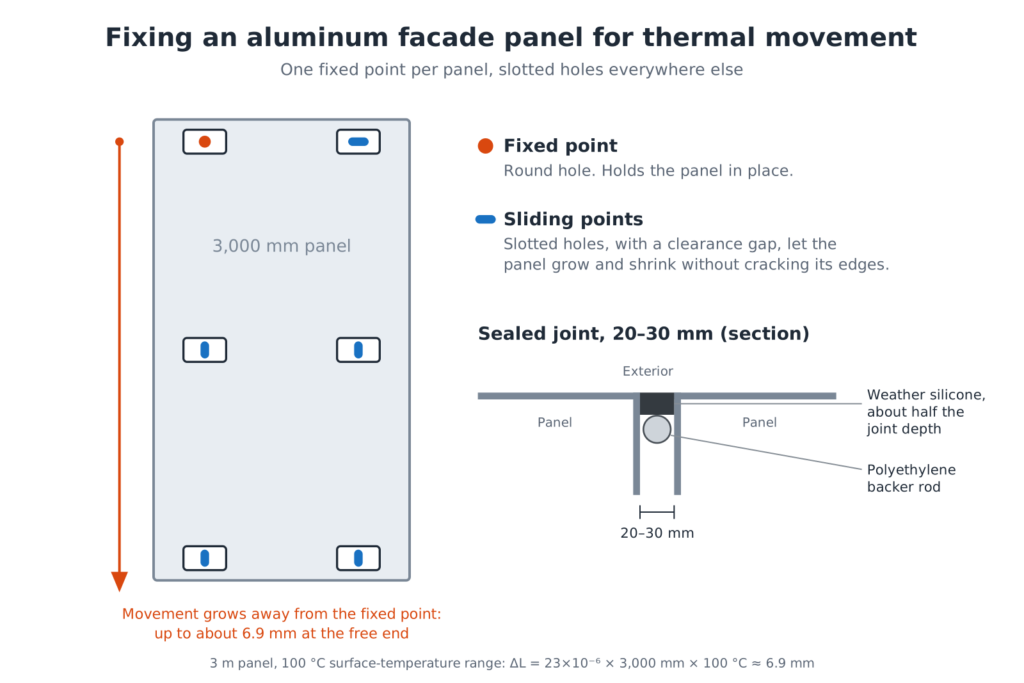

How to accommodate it:

• Fix each panel at one fixed point and let the other fixings slide, using slotted holes in the brackets.
• Size the joint width for the calculated movement, plus installation tolerance.
• Check that the sealant’s movement capacity covers the joint movement, or use an open-joint system with no sealant at all.
• Install with the movement range in mind. A panel fixed on a very hot afternoon needs more room to shrink than to grow.

Typical joint and fixing details at Dingchengzun:

Panel Thickness, Alloy and Stiffening

Heat does not only make panels longer. It also makes large flat panels bow slightly when the sunny face is hotter than the back, which shows up as visible waviness, called oil-canning, in low-angle light. Three choices reduce it.

• Thickness: 2.5 mm solid aluminum panels are our standard and suit most projects. Step up to 3.0 mm for large panels in hot climates, tall buildings and high wind loads. Thinner sheet saves cost but shows distortion more easily.
• Alloy: our standard facade alloy is 3003, which balances strength, formability and corrosion resistance. 5005 is available where an anodized finish is wanted. Single panels are generally kept within 3 m in their longest dimension.

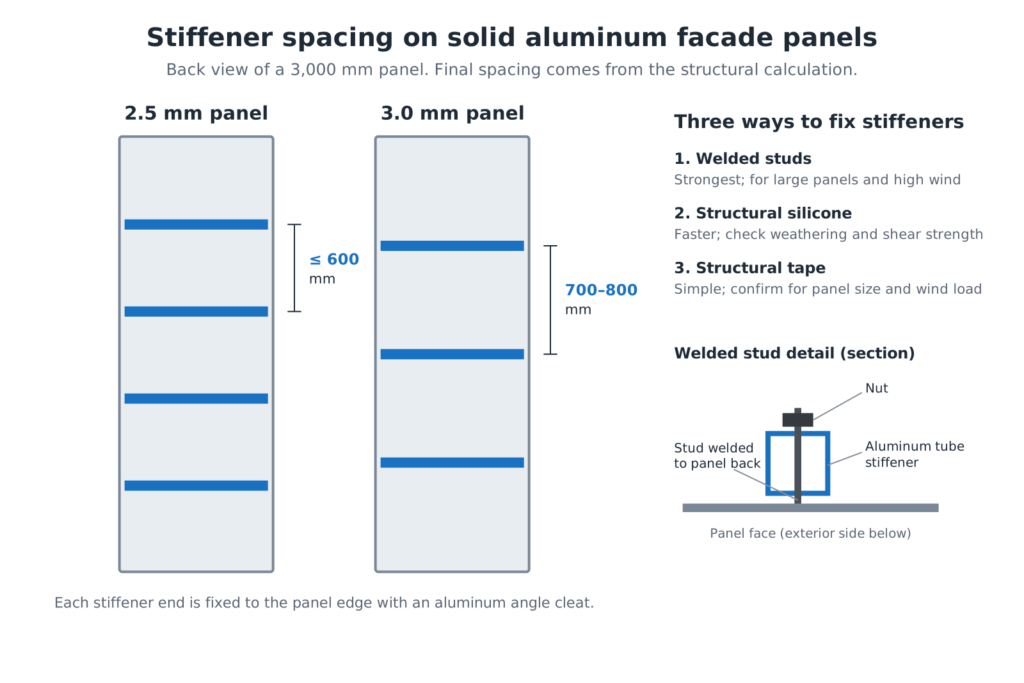

• Stiffeners: aluminum sheet has low stiffness, so larger panels need ribs on the back to keep the face flat under heat and wind. As a rule, stiffeners are spaced no more than 600 mm apart on 2.5 mm panels, and 700–800 mm apart on 3.0 mm panels. Final spacing comes from the structural calculation and the manufacturer’s technical requirements.

How stiffeners are fixed. There are three common methods. In all three, both ends of each stiffener are fixed to the panel’s edge frame with aluminum angle cleats.

With welded studs, ask for mark-free welding, which avoids visible marks showing through on the panel face.

Wind load matters too. Dust storms bring strong gusts, and tall buildings face high suction at corners and edges. Panel thickness, stiffener spacing and bracket design should all be checked against the project’s wind load calculation, not chosen from a standard table. Our integral solutions service includes this engineering support as part of supply.

Dust: Joints, Sealants and Cleaning

Sand and dust attack a facade in three ways: they abrade the surface, they build up in joints and drainage paths, and they make the building look dirty within weeks. Detailing can reduce all three.

Both work in hot climates. Sealed joints suit sites with heavy, frequent dust storms. Open joints suit sites where movement is large and long-term sealant maintenance is a concern.

Practical details that help:

• Use a non-staining structural or weather silicone approved for the coating, to avoid dark streaks below joints.
• Keep horizontal ledges and returns to a minimum, because dust settles on them and washes down the face as streaks.
• Provide drainage and ventilation paths that cannot clog with sand.
• Plan cleaning access from the start. PVDF’s smooth, low-energy surface releases dust more easily than polyester, and rain or a water rinse removes most of it.

Our Experience in Central Asia and Africa

Central Asia is one of the most demanding climates for a facade, because it adds deep winter cold to summer heat and dust. Dingchengzun has supplied projects in Tajikistan and Kazakhstan, as well as facades for hot-climate markets such as Angola.

Dushanbe, Tajikistan: luxury residential development. We delivered the complete aluminum facade cladding for a premium residential project in Dushanbe, together with curved aluminum ceilings for the interior lobby and lounge areas. Our scope included facade optimization, custom panel fabrication and international project delivery. Read the Dushanbe project story.

Almaty, Kazakhstan: Almaty International Airport. Inside the terminal we supplied 12,643 m² of aluminum baffle ceiling, coordinating suspension, lighting and services across large spans. Read about the Almaty project.

Luanda, Angola: large supermarket facade. For a large supermarket in Luanda, completed in 2025, we supplied 1,000 m² of 2.0 mm solid aluminum panels with an AkzoNobel PVDF coating in white. The white finish reflects much of the tropical sun, keeping panel temperatures and thermal movement lower. Read the Luanda supermarket project story.

Lebanon: interior ceilings. In the Middle East, we have supplied aluminum ceiling systems for a project in Lebanon.

On both projects the same lesson applied: the specification has to be written for the local climate and site conditions, then checked on site before production, not copied from a project elsewhere. See more completed work in our project gallery.

Specification Checklist for Hot, Dusty Sites

Use this list when writing or reviewing a facade specification:

1. Coating: 70% PVDF, compliant with AAMA 2605; two-coat for solid colors, three-coat for metallics and high-abrasion zones. Ask for the coating supplier’s test report; third-party testing can be arranged.
2. Color: light or heat-reflective colors preferred; for dark colors, a cool PVDF formulation.
3. Panel: solid aluminum, 3003 or 5005 alloy, 2.5 mm standard, 3.0 mm for large panels and high wind loads, thickness confirmed after coating.
4. Stiffeners: spacing from the structural calculation for project wind load and panel size.
5. Thermal movement: calculated for the site’s full surface-temperature range; one fixed point per panel, slotted sliding fixings elsewhere.
6. Joints: sealed with a non-staining silicone rated for the calculated movement, or an open-joint rainscreen with a UV- and dust-resistant membrane.
7. Fire: Class A2 or better panel; confirm the local code and the test report the authority accepts.
8. Detailing: minimum horizontal ledges; drainage that will not clog with sand; cleaning access planned.
9. Mock-up: a visual mock-up approved on site, checked in direct sun and in morning and evening light.

Frequently Asked Questions

Is aluminum a good facade material for desert climates? Yes, when it is specified correctly. Aluminum does not rust, it is light, and coated solid panels are rated Class A2 for fire. Most failures in hot climates come from the coating or the fixings, not the metal.

Will dark-colored aluminum panels fade in the desert sun? A PVDF coating that meets AAMA 2605 is tested to change color by no more than 5 ΔE units after 10 years of South Florida exposure. Dark colors also run hotter, so consider a cool, infrared-reflective formulation.

How much does an aluminum facade panel expand in the heat? About 0.023 mm per meter for each °C. A 3 m panel can move nearly 7 mm across a 100 °C range in surface temperature, which is why slotted fixings and calculated joints matter.

Solid aluminum panel or aluminum composite panel for the Middle East? Coated solid aluminum is rated Class A2 for fire and forms easily into curves and perforations. Composite panels with a plastic core are restricted under fire codes in markets such as the UAE. Only fire-rated composite panels can be considered, and only where the local code allows them.

How do I keep an aluminum facade clean in a dusty city? Use a smooth PVDF finish, minimize ledges where dust settles, and plan a regular rinse. Most dust washes off with water.
