Convention & Exhibition Center Ceiling Systems: Long-Span Suspension and Acoustic Design Guide

Convention centers and exhibition halls are among the most demanding environments for architectural ceiling design. A single hall may need to span 40, 60, or even 100+ meters column-free, hold up under regional wind and seismic loads, support heavy MEP loads above the ceiling plane, and — at the same time — keep a room full of people, PA systems, and exhibition noise from turning into an unusable echo chamber.

Getting this right requires more than picking a ceiling product from a catalog. It requires coordinating structural suspension design with acoustic performance from the earliest planning stage. This guide walks through both sides of that equation, and how to match ceiling system types to the specific goals of a large public space.

Why Convention Centers Present Unique Ceiling Challenges

Compared to offices, retail interiors, or hospitals, convention and exhibition spaces have a distinct set of constraints:

• Extreme spans. Column-free halls are the whole point of these buildings, which means suspension systems have to carry loads across much greater unsupported distances than a typical drop ceiling.
• Greater floor-to-ceiling height. Taller spaces change how wind loading, seismic movement, and thermal expansion affect the suspension grid and its connection points.
• Heavy reverberation. Hard floors, glass facades, and large air volumes mean sound has nowhere to go. Without acoustic treatment, announcements and crowd noise blur together.
• Dense MEP coordination. Lighting rigs, HVAC ductwork, fire suppression, and rigging points for exhibition booths all compete for space above the ceiling — the system needs to be serviceable, not just installed once and forgotten.
• High-frequency maintenance access. Exhibition halls get reconfigured constantly. Ceiling systems need to tolerate repeated access without degrading.

Any ceiling system chosen for this environment needs to be evaluated against all five of these factors together, not just against a spec sheet for square-meter cost.

Long-Span Suspension System Design

Primary and Secondary Grid Selection

The backbone of any long-span ceiling is its grid — the primary and secondary support members that carry the panel load back to the structural roof or truss system. For convention centers, the choice generally comes down to:

• Light-gauge steel grid systems, which offer strong load capacity per unit cost but add weight to the overall hung assembly.
• Aluminum alloy suspension systems, which trade some raw load capacity for significantly reduced dead weight — an advantage when spans are long and every kilogram matters for the supporting structure above.

For most exhibition hall applications, aluminum framing is preferred specifically because it reduces the cumulative load on the roof structure across a large span, while still meeting deflection limits when properly spaced.

Hanger Spacing and Load Calculation Logic

Hanger (suspension rod) spacing is where span, panel weight, and wind/seismic load all intersect. As a general planning reference:

• Wider spans require tighter hanger spacing near mid-span, where deflection is greatest.
• Panel self-weight, insulation (if used), and any point loads from lighting or signage attachments all factor into the total load per hanger.
• Regional wind uplift and seismic design categories will typically dictate a minimum hanger density regardless of panel weight — this should be confirmed against local building code, not assumed from a supplier’s standard spacing table.

The right approach is to treat hanger layout as a project-specific engineering exercise, informed by structural drawings, rather than applying a single spacing rule across every hall.

Seismic and Wind Load Considerations

In seismic zones, suspended ceilings need lateral bracing in addition to vertical support — typically compression struts and diagonal wires or rigid bracing at defined intervals — to prevent the grid from swaying and disconnecting during ground motion. In coastal or high-wind regions, pressure differentials at large open spans (especially near entrances or operable facades) can also place uplift stress on the ceiling assembly. Connection detailing at the perimeter and at any expansion joints deserves particular attention, since these are the points most likely to fail under cyclic loading.

Panel Weight and Thickness Selection

Aluminum ceiling panel thickness is typically specified between 0.6mm and 1.0mm for architectural applications, with the choice driven by a balance of rigidity, span between supports, and finish requirements:

• 0.6mm panels are lighter and more economical, suitable for smaller module sizes or tighter support spacing.
• 0.8mm is a common mid-range choice for larger tile or panel formats where some additional stiffness is needed to prevent visible oil-canning.
• 1.0mm and above is generally reserved for larger custom panels, curved sections, or areas with higher handling and maintenance frequency.

Thicker is not automatically better — oversizing panel thickness adds unnecessary weight to the suspension system without meaningfully improving acoustic or aesthetic performance in most cases.

Designing for Maintenance Access

Convention centers change configuration constantly, and MEP systems above the ceiling need regular servicing. Long-span systems should be planned with:

• Defined access/inspection points at reasonable intervals, not just at the perimeter
• Modular panel systems (clip-in or lay-in) in zones with frequent MEP access, reserving fixed or welded assemblies for areas with minimal servicing needs
• Clear documentation of panel removal sequencing, especially for curved or custom-shaped sections

Acoustic Design Principles for Large Public Spaces

Reverberation Time and Room Volume

Reverberation time (RT60) — the time it takes for sound to decay by 60 decibels after the source stops — is the primary metric used to evaluate whether a large space will sound clear or muddy. Larger room volumes naturally produce longer reverberation times unless enough absorptive surface area is introduced. Convention halls used primarily for speech and announcements generally target a shorter RT60 than halls used mainly for open exhibition traffic, since speech intelligibility is far more sensitive to reverberation than ambient crowd noise is.

NRC: The Basic Metric for Absorption

Noise Reduction Coefficient (NRC) is a single-number rating (0 to 1) representing how much sound energy a material absorbs versus reflects, averaged across common speech frequencies. A higher NRC means more sound is being absorbed rather than bounced back into the room. For ceiling systems in large halls, NRC is one of the first specifications an acoustic consultant will ask for, alongside the percentage of ceiling area actually being treated (a small acoustic ceiling tile in an otherwise hard-surfaced hall won’t move the needle much).

Perforation Ratio and Absorption Performance

For perforated aluminum ceiling systems, the relationship between hole size, hole spacing (open area percentage), and acoustic backing material determines the actual absorption performance:

• Higher open area percentages generally improve absorption at mid-to-high frequencies but reduce panel stiffness and can affect visual appearance.
• An acoustic fleece or mineral wool backing behind the perforated panel is typically what drives meaningful NRC improvement — perforation alone, without backing, has limited effect.
• Different hole diameters and patterns shift which frequency ranges are absorbed most effectively, which matters when the space needs to control both low-frequency crowd rumble and higher-frequency speech clarity.

Baffle vs. Grid vs. Perforated Systems: Acoustic Comparison

Matching Ceiling System Type to Structural and Acoustic Goals

No single ceiling system is the right answer for an entire convention center. Most well-designed projects mix systems by zone:

• Main exhibition halls: Baffle ceiling or open-cell grid systems, often combined with perforated infill panels, to maximize absorption across the largest reverberant volume in the building.
• Pre-function areas and lobbies: Strip or linear ceiling systems, balancing acoustic control with a more finished architectural look for spaces where guests linger.

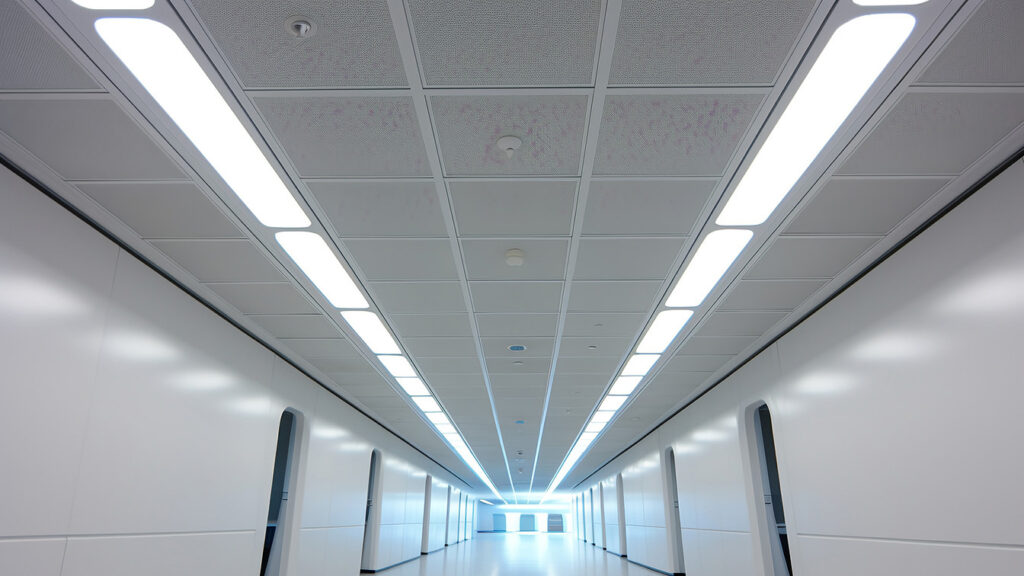

• Corridors and back-of-house circulation: Clip-in or lay-in tile systems, prioritizing ease of maintenance access over acoustic performance.

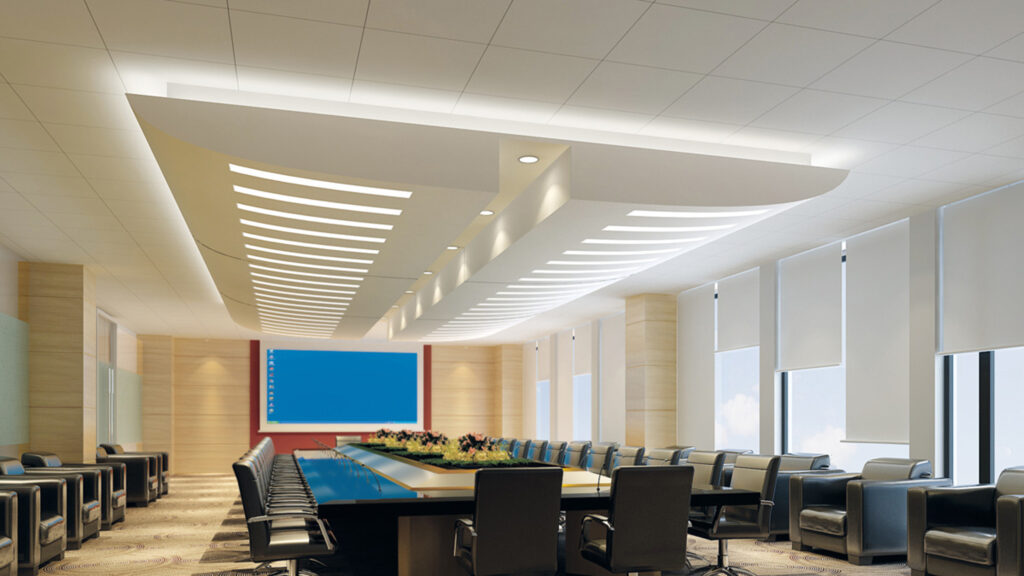

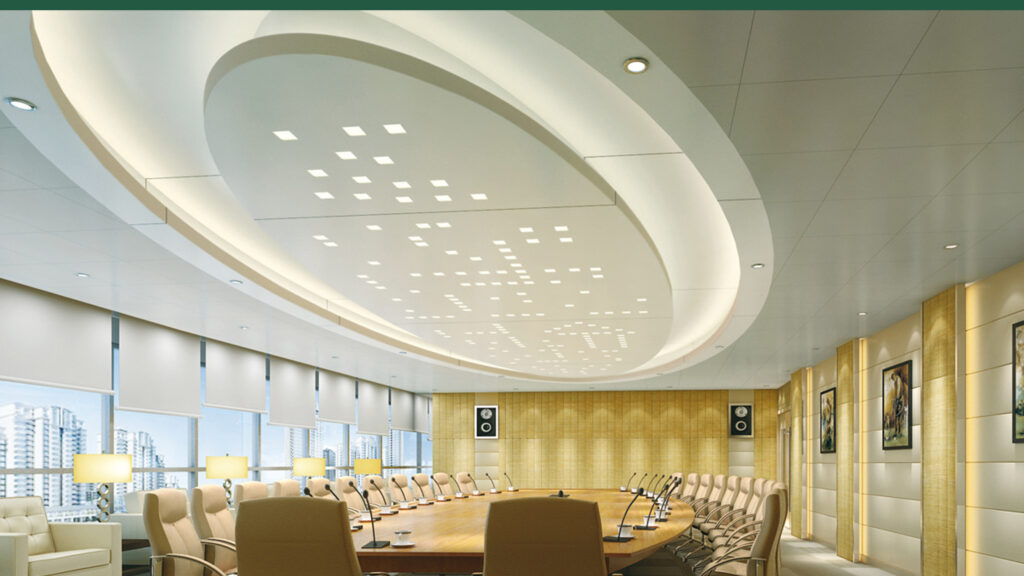

• Meeting rooms within the larger complex: Higher-NRC perforated or mineral-wool-backed systems, since smaller enclosed rooms are more sensitive to reverberation at conversational volumes.

The right combination should come out of the acoustic consultant’s RT60 targets and the structural engineer’s span/load requirements — not out of a single product being applied uniformly across every space in the building.

Material and Finish Considerations

Beyond thickness and perforation, a few material factors matter specifically for convention center environments:

• Finish type has minimal impact on acoustic performance. Powder coating, PVDF, or anodized finishes affect durability and appearance, not sound absorption — that’s governed almost entirely by perforation and backing material. This is a common point of confusion worth clarifying early in design discussions.
• Fire rating is non-negotiable in large assembly occupancies; panels and any acoustic infill should meet the applicable local fire classification.
• Corrosion and humidity resistance matter more than they might seem to at first glance — convention centers frequently sit near food service areas, restrooms, or operate in humid coastal climates, all of which accelerate finish degradation on lower-grade coatings.
• Color and surface consistency across a large span is a manufacturing quality issue as much as a design one — visible batch-to-batch variation is far more noticeable across a 60-meter hall ceiling than in a small room.

Design & Procurement Checklist

Before requesting quotations or drawings from a ceiling manufacturer, it helps to have these parameters defined:

• Confirmed span dimensions and any structural constraints (truss spacing, available hanging points)
• Target RT60 or NRC value from the acoustic consultant, by zone
• Applicable wind/seismic design category for the project location
• Required fire rating classification
• Panel module size and thickness preference (or willingness to have this recommended)
• Finish and color requirements, including any custom color-matching needs
• Maintenance access requirements — which zones need frequent panel removal versus fixed installation
• Project timeline, including any need for shop drawings and sample approval before mass production

Having these answers ready significantly shortens the technical review and quotation cycle on the manufacturing side.

Conclusion

Long-span suspension and acoustic performance aren’t separate problems to solve one after another — they’re two constraints on the same design decision. A ceiling system chosen purely for acoustic performance without accounting for span and load will fail structurally; one chosen purely for structural efficiency without acoustic input will leave the hall unusable for anything involving a microphone. The projects that get this right treat ceiling design as a system-level engineering exercise from the start, coordinating structural, acoustic, and MEP requirements before committing to a single product family.
