Metro & Railway Station Ceiling Systems: Durability, Vandal Resistance, and Maintenance Access Guide

Transit hubs are among the most demanding environments for any building material. A metro or railway station ceiling doesn’t just need to look presentable in a product photo — it needs to survive decades of continuous train-induced vibration, humid or coastal air, heavy daily foot traffic, and the occasional extreme weather event, all while staying accessible for routine maintenance without ever shutting down a line.

To make these requirements concrete, this guide walks through a real 12-year performance record from a three-line interchange station on the Guangzhou Metro network, breaking down what actually held up — and why — across three critical dimensions: durability, vandal/impact resistance, and maintenance access.

Project Snapshot

The station referenced throughout this guide is a Grade-A critical transit facility located in a core commercial district, serving as an interchange point for three metro lines.

• Daily passenger flow: over 350,000 riders
• Total ceiling area: approximately 12,000 m² across concourses, platforms, and interchange corridors
• Years in operation: 12 years, without a single ceiling collapse, detachment, or water-ingress-related structural failure
• Weather exposure: multiple typhoons and heavy rainstorm events, including an extreme rainfall episode in summer 2023

This track record makes the station a useful reference point for what “durable enough for a transit hub” actually looks like in practice, rather than in a spec sheet. You can browse more transit-related project references in our Station Project gallery.

Durability: Materials and Long-Term Performance

Ceiling durability in a station environment comes down to two things: what the panels are made of, and how the structural system behaves under sustained mechanical and environmental stress.

Material selection The core panels used 3mm-thick AA3005-series corrosion-resistant aluminum alloy, finished with a fluorocarbon (PVDF-type) spray coating — one of several surface finish options suited to long-term outdoor and high-humidity exposure. The keel system was built from hot-dip galvanized high-strength steel, with all load-bearing connectors passivated against rust. The overall structural design targeted a service life aligned with the station’s 100-year primary structure safety baseline — a deliberately conservative benchmark for critical infrastructure.

12-year field performance After more than a decade of continuous exposure to:

• vibration from 350,000 daily passengers and constant train movement,
• high humidity and salt-fog conditions typical of southern coastal China, and
• repeated thermal expansion/contraction from HVAC cycling,

periodic inspections recorded a 99.7% coating integrity rate on the panels and less than 0.1% keel corrosion, with no loosening or deformation found at any connection point — figures well above typical industry benchmarks for comparable installations.

Even in areas close to the Pearl River where humidity is persistently high, localized water seepage marks that appeared over the years never progressed into panel warping or keel corrosion — a direct validation of the coating and structural design working as intended, not just in a lab test.

Vandal & Impact Resistance: What Actually Held Up

Public transit ceilings face risks that office or retail ceilings rarely encounter: constant vibration from passing trains, occasional impact, and the practical need to withstand years of unplanned stress without warning. The station’s approach combined structural redundancy, risk anticipation, and emergency-scenario protection.

Structural redundancy Every ceiling panel was secured with a dual-fixing system — clip fasteners plus a secondary safety cable — with each panel rated to carry 150 kg of vertical load, far exceeding the working weight of maintenance personnel. This means that even if a keel segment develops minor damage, there is no risk of a panel falling.

To address the high-frequency vibration caused by trains passing through the platform, the design phase included fatigue simulation testing at 10 million vibration cycles, confirming no loosening or crack propagation at structural joints under that load. Testing protocols like this are typically documented alongside product-level certifications that specifiers can request during project review.

Real-world extreme weather test During its 12 years of operation, the station weathered multiple yellow-level typhoon warnings and short-duration heavy rainfall events. In the summer 2023 extreme rainstorm that affected Guangzhou, water briefly backed up near station entrances, causing short-term water exposure to a section of the concourse ceiling. A post-event inspection found no deformation and no panel detachment — only minor surface water marks that were resolved with routine cleaning, with zero impact on station operations.

Proactive risk management The ceiling system was placed on a monthly high-frequency inspection list as part of the station’s critical-facility monitoring program, aligned with transit infrastructure degradation classification standards. Inspectors specifically check panel seams, keel welds, and fastener connections. Any micro-crack under 0.2mm or minor loosening is addressed immediately as a preventive measure — stopping small issues before they become structural ones.

Maintenance Access: Built for Serviceability, Not Just Installation

A ceiling system that looks good on day one but requires panel removal for every lighting or HVAC repair becomes an operational liability over a 10+ year lifespan. This station’s maintenance corridor network was designed to standardized specifications from the outset.

Catwalk specifications

• Permanent maintenance catwalks: 600mm wide, sufficient for single-person passage
• Overhead clearance: 2,100mm, allowing maintenance staff to walk upright
• Guard railings: 1,100mm high on both sides
• Critically, all catwalk load-bearing structures are suspended directly from the station’s primary concrete beams — never connected to the ceiling keel system itself — eliminating any risk of maintenance activity adding structural load to the ceiling.

Supporting infrastructure

• Catwalks are floored with anti-slip steel grating rated Class A non-combustible
• Emergency lighting and directional safety signage installed every 8 meters along the corridor
• At least 2 direct access points to equipment areas per fire compartment

Measured efficiency gains Thanks to this maintenance corridor network, routine servicing of lighting, fire protection, and HVAC lines no longer requires temporarily dismantling ceiling panels. Standard inspection time dropped from 4 hours to 1.5 hours per cycle — a meaningful operational saving that also reduces wear from repeated panel removal and reinstallation, further extending the system’s overall service life. Project teams planning similar access layouts can request layout drawings through our Technical Documentation resources.

What This Case Means for Ceiling System Selection

This station’s 12-year record points to a few selection criteria worth prioritizing for any metro, railway, or high-traffic transit project:

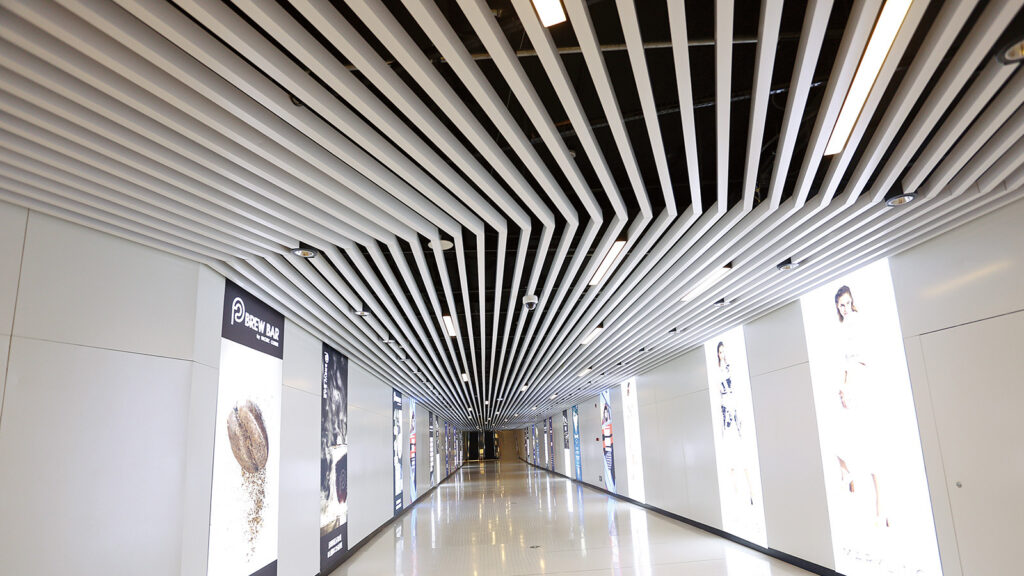

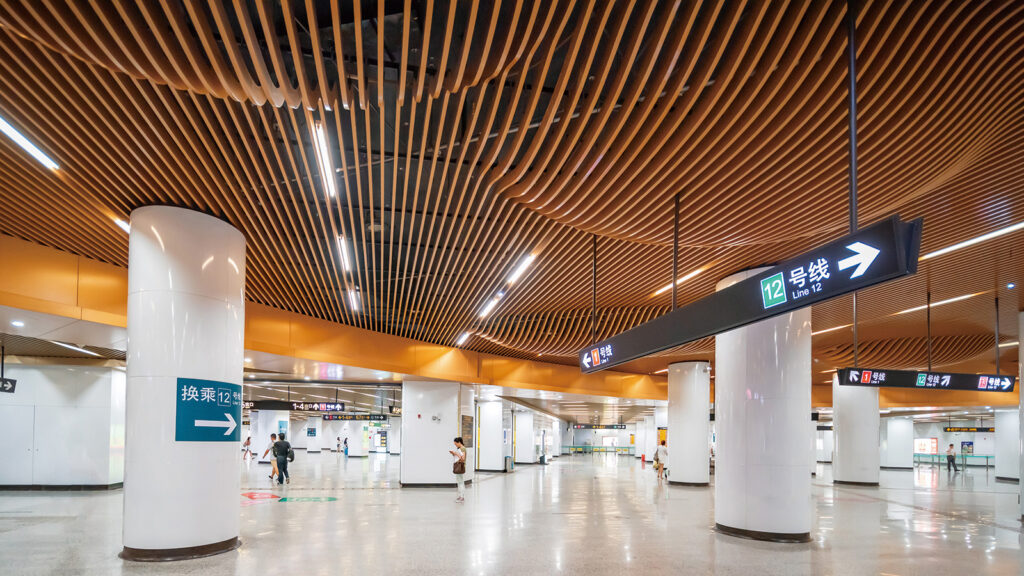

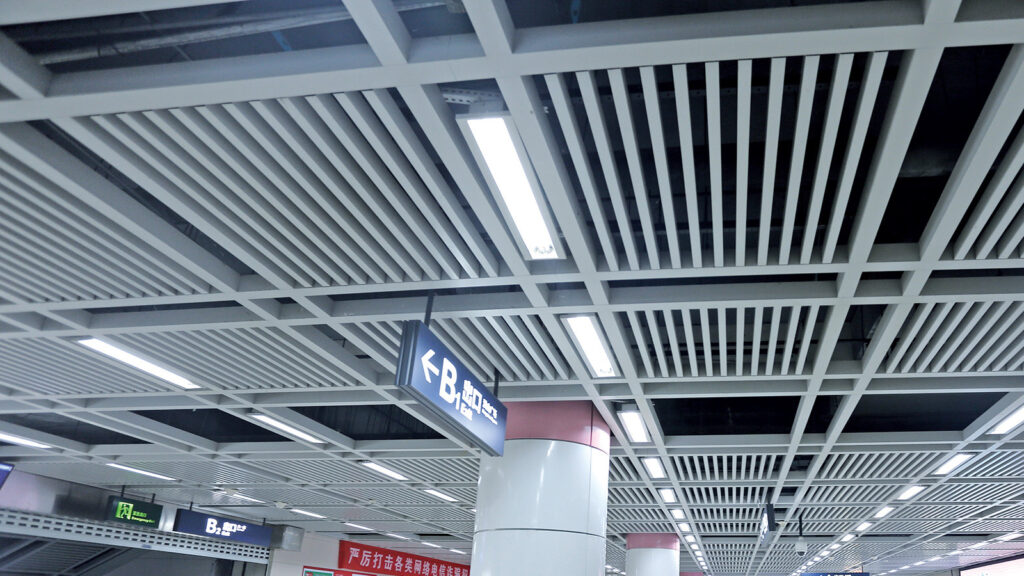

Product types such as Baffle Ceiling, Strip Ceiling, and Clip-In Ceiling systems are commonly specified for station concourses and platforms precisely because their modular, section-replaceable design supports this kind of long-term maintenance strategy — allowing individual panels to be serviced or replaced without disturbing the surrounding system. For examples already in use in transit interiors, see our Linear Baffle Ceiling System for Subway Station Interiors and Metro Station Aluminum Strip Ceiling System.

For projects requiring railway-specific exterior systems, related references include the Railway Station Aluminum Exterior Wall Panel, Metro Station Entrance Aluminum Panel Curtain Wall, and Aluminum False Ceiling Panels for Metro Station Interiors.

Quick Specification Checklist

Before finalizing a ceiling system for a metro, railway, or transit-adjacent project, confirm the following with your supplier:

• Panel material grade and thickness (e.g., 3mm+ marine-grade aluminum alloy)
• Coating type and rated durability (fluorocarbon/PVDF vs. standard powder coating)
• Keel material and corrosion treatment (hot-dip galvanized vs. standard)
• Panel load rating and fixing method (single vs. dual-fixing systems)
• Vibration fatigue test data, if available
• Modular/section-level maintenance access design
• Warranty period and expected service life alignment with the building’s structural lifespan

Conclusion

Twelve years of continuous operation, 350,000 daily passengers, and multiple extreme weather events later, this station’s ceiling system tells a straightforward story: durability, vandal resistance, and maintenance access aren’t separate features — they’re interconnected design decisions that determine whether a ceiling system is still performing reliably a decade after installation, not just on the day it’s installed.

If you’re planning a metro, railway, or transit-hub project and want to discuss which ceiling system best fits your specifications, get in touch with our engineering team for project-specific recommendations and technical documentation.
