What Is a Grid Ceiling System? Open Cell, Grille Types, and Selection Guide

Walk through almost any large supermarket, metro concourse, or school corridor and you’ll likely see a checkerboard of open aluminum squares overhead. Most people call it a “grid ceiling.” Some call it “open cell.” Others call it a “grille ceiling.” In casual conversation, the three terms get used interchangeably — but on a shop drawing, they are not the same product, and choosing the wrong one shows up later as uneven lighting, a ceiling that reads too heavy or too flimsy, or a maintenance headache nobody budgeted for.

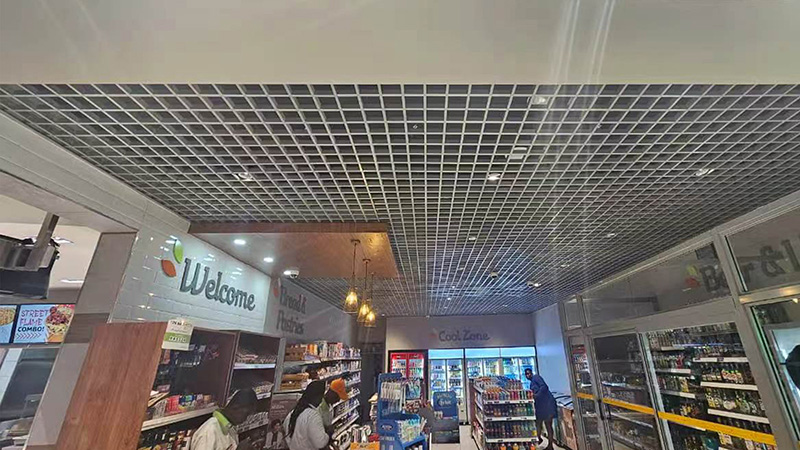

On a recent 3,000 m² supermarket project, the final specification came down to a 150×150mm grid module, 0.4mm panel thickness, a 15×37mm carrier profile, and a black polyester powder coat finish. None of those four numbers were arbitrary — each one was a direct response to how the space would actually be used. This guide walks through what a grid ceiling system actually is, how it differs from open cell and grille ceilings, and uses that real project as a working example of how the numbers get chosen.

Grid Ceiling System for Commercial Interiors Engineered for supermarkets, retail spaces, transit stations, and public buildings requiring an open, uniform ceiling appearance with strong MEP access and low-maintenance durability. Available in multiple grid module sizes, carrier profile depths, and surface finishes.

What Is a Grid Ceiling System?

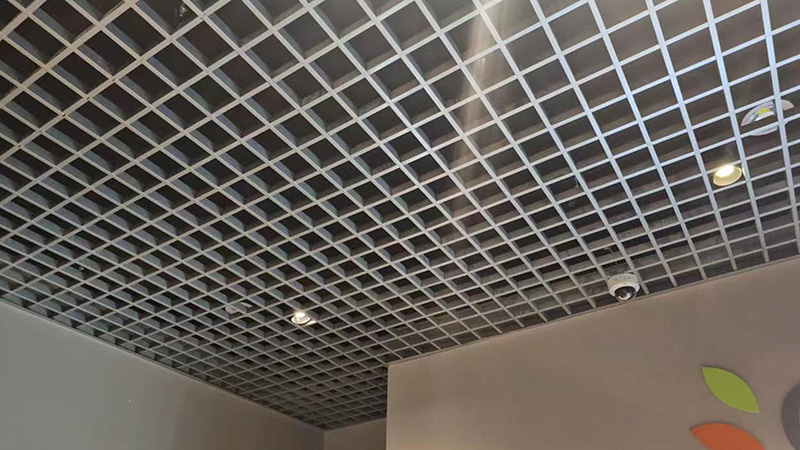

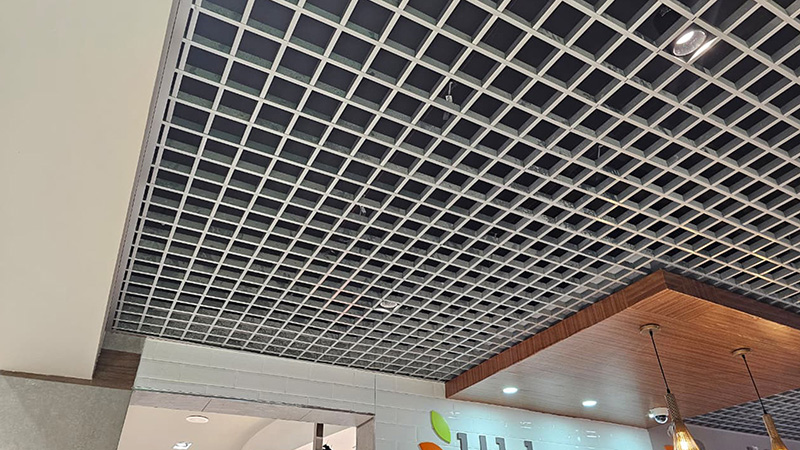

A grid ceiling system is a suspended ceiling built from intersecting aluminum members — main runners and cross tees — that form an open, cellular structure viewed from below. Unlike a solid or perforated panel ceiling, the grid itself is the finished surface; there is no infill tile covering the cells. The result is a ceiling plane that reads as open and modular, while still providing a consistent suspension grid that lighting, sprinklers, and HVAC diffusers can be coordinated against.

In the supermarket project referenced above, the grid module was specified at 150×150mm. That’s a comparatively tight cell size, and it wasn’t chosen for aesthetics alone. At 3,000 m², the ceiling plane needed to read as visually uniform under long sightlines down the aisles, and a tighter module gives a denser, more consistent texture than a 300×300mm grid would across that much continuous area. It also meant the lighting layout — largely LED strip and downlight combinations over shelving — could align to the grid without large gaps between fixtures.

The carrier profile itself was specified at 15×37mm (height × width). This is the cross-section of the aluminum members forming the grid, and it sits at the center of a real trade-off: a taller or thicker profile adds rigidity and reduces long-span deflection, but it also increases the visual “thickness” of the grid lines and reduces the openness of each cell. At 15×37mm, the profile carries enough rigidity for the 150mm module spacing without the grid lines dominating the sightline — a balance that would shift if the module size or ceiling void depth were different.

Grid Ceiling vs Open Cell vs Grille Ceiling — What’s the Difference?

These three terms overlap in casual use because they all describe open, non-solid ceiling structures. Structurally and functionally, though, they diverge:

For the supermarket project, Grid was selected over Open Cell specifically because of shelving and lighting uniformity requirements. An open cell system’s deeper cell walls create more dramatic shadow play — desirable in a lobby or atrium, but counterproductive over dense retail shelving where even, shadow-free illumination matters more for product visibility than architectural drama. Grille was ruled out early because its directional linear pattern doesn’t align cleanly with a rectilinear aisle-and-shelf layout the way a square grid does.

Key Technical Parameters — A Real Project Breakdown

Grid Module: 150×150mm

Smaller modules like 150×150mm suit spaces with dense fixture layouts — shelving, task lighting, frequent service penetrations — where a large 300×300mm cell would force lighting and diffuser placement to fight the grid lines instead of aligning with them. The trade-off is more linear meters of aluminum runner per square meter, which affects material cost and installation time on a large floor plate.

Carrier Profile: 15×37mm

This is the structural backbone of the grid. At this depth and width, the profile is sized to control deflection across the suspension centers typical of a 150mm module without over-thickening the visible grid line. Projects specifying a wider module (300mm+) generally need a taller or reinforced profile to control sag across the longer unsupported span — a detail worth confirming with the manufacturer’s span tables before finalizing a module size independent of the profile.

Panel Thickness: 0.4mm

Across 3,000 m² of continuous ceiling, even minor inconsistencies in flatness become visible under long sightlines and store lighting. A 0.4mm aluminum gauge was specified as the practical minimum for dimensional stability at this module size — thin enough to keep weight and cost proportional to the project scale, but not so thin that panel members show waviness once installed and lit from below. Projects with wider spans or heavier surface treatments sometimes step up to a thicker gauge; 0.4mm was appropriate here given the tight 150mm module already limiting unsupported length.

Surface Finish: Polyester Powder Coat, Black

Black was not the default color — it was a functional choice. In a supermarket ceiling void carrying sprinkler lines, cable trays, and HVAC ductwork, a dark grid recedes visually and reduces the “cluttered plenum” effect that a white or silver grid would expose more clearly against the same background. It also increases contrast with the LED lighting mounted at shelf level, making product displays read brighter without adding fixture wattage.

Polyester powder coating was selected over PVDF for this project because the ceiling sits in a fully interior, climate-controlled retail environment with no direct UV or weather exposure — the conditions where PVDF’s long-term fade resistance becomes the deciding factor. For interior retail applications like this one, polyester powder coat offers the color depth and film durability needed at a lower cost than PVDF, without giving up performance the project doesn’t actually require. (For a full breakdown of when PVDF becomes necessary instead, see our comparison guide on powder coating vs PVDF for aluminum ceilings.)

Grille & Open Cell Ceiling Systems for Retail and Public Interiors For projects requiring a more dimensional or directional ceiling aesthetic, Dingchengzun also supplies open cell and grille configurations with matching customization on module size, profile depth, and finish.

Acoustic & MEP Considerations for Large-Format Supermarket Ceilings

At 3,000 m², MEP coordination is less about any single system and more about repetition accuracy. Sprinkler heads, HVAC diffusers, and cable tray access points need to land on the same grid module thousands of times over without visible drift — a tolerance problem that compounds with scale far more than it does on a 200 m² space. A 150mm module gives installers finer alignment increments to work with when locating fixtures, at the cost of more coordination points to manage overall.

Acoustically, an open grid ceiling does little to absorb sound on its own — the open cells simply expose whatever is above them (structure, ductwork, or an acoustic backing layer, if specified). For a supermarket, where ambient noise from refrigeration units, trolleys, and announcement systems is a background factor rather than a primary design driver, this trade-off is generally acceptable. Spaces with stricter acoustic requirements — restaurants, open-plan offices — typically pair a grid or open cell structure with an acoustic infill or backing material rather than relying on the grid alone.

Where Grid Ceilings Perform Best — Application Guide

The supermarket project’s 150mm specification sits at the tighter end of this range precisely because of shelf density — a useful reference point for similarly fixture-heavy retail environments rather than a universal default.

Common Selection Mistakes

Defaulting to a large module because it looks cleaner in a rendering. A 300×300mm grid photographs well in isolation, but across a dense retail floor plate it often forces lighting and diffuser layouts into awkward off-grid positions, undermining the exact uniformity a grid ceiling is meant to deliver.

Specifying panel thickness without checking it against module size and span. A thinner gauge that would perform fine on a tight 150mm module can visibly wave or oscillate under HVAC airflow if applied to a wider, longer-span module without compensating profile depth.

Choosing PVDF by default “for durability.” PVDF is the right call for exterior or high-UV-exposure applications, but for a fully interior retail environment like this supermarket, it adds cost without addressing a failure mode the project will ever actually encounter — polyester powder coat performs equivalently indoors at a lower price point.

Picking color for the rendering, not the plenum. A light-colored grid can look crisp in a 3D visualization but will expose every visible pipe, duct, and cable tray above it under real lighting conditions. Darker finishes are frequently the more practical choice in ceilings with dense MEP congestion, even when they weren’t the first instinct in the design phase.

Getting the Specification Right

A grid ceiling isn’t a single standard product — the module size, carrier profile, panel gauge, and finish all shift depending on the building type, fixture density, and MEP load above the ceiling line. The 150×150mm / 0.4mm / 15×37mm / black polyester powder coat specification that worked for this 3,000 m² supermarket project reflects decisions made against that specific floor plate, not a template to copy without adjustment.

Dingchengzun has supplied grid, open cell, and grille ceiling systems for retail, transit, and institutional projects across multiple markets, with full customization on module size, profile depth, and surface finish. Contact our team with your floor plan and fixture layout for a project-specific specification.
